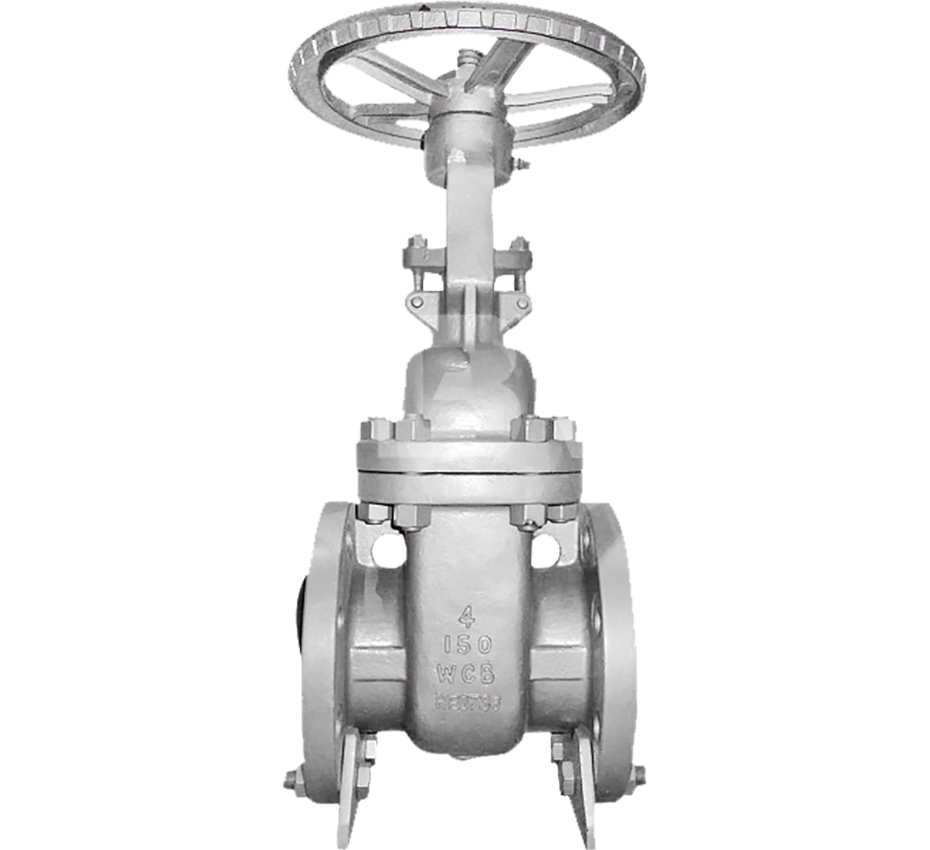

Gate Valve

What are Gate Valves?

Gate valves are a kind of control valve that either allows media to pass through them unhindered or fully restricts the passage of fluid through the valve. Gate valves have a wide range of uses across many different industries. The most important advantage of using a gate valve is the provision of a channel that is free from any obstructions and runs in a direct line. Because of this, there is only a negligible amount of pressure that is lost through the valve. The unrestricted bore of a gate valve, in contrast to the confined bore of a butterfly valve, makes it feasible for a pig to travel freely through the valve while it is being used in the process of cleaning pipes. However, since gate valves are more difficult to operate than quarter-turn valves, you should only use them in the fully open or fully closed position. Gate valves should not be utilized for flow control as this would defeat the purpose of having them. It is possible to get automated gate valves that make use of either an electric or a pneumatic actuator, but it is more cost-effective to make use of a manual gate valve given that gate valves are typically just used on an infrequent basis. Gate valves also go by the name sluice gate valves, however, the two terms may be interchanged without any loss of meaning.

Working of Gate Valves:

The functioning of a gate valve is not drastically different from the operation of other types of valves. You may open the valve by twisting the handwheel (A), which is located on the side of the valve. This is due to the fact that spinning the handwheel will force the gate (G) to move vertically on the stem (B) via the threads, either upwards or downwards. To fully open or close a gate valve, the handle of the valve must be turned through more than just 360 degrees in a single revolution. When the gate is lifted, it creates an opening between the inlet and the exit. This enables the medium to pass through the opening unhindered. When the gate is lowered, it closes the opening. When the lever is pulled down, the gate will slide shut, preventing any more of the medium from going through.

The relationship between the vertical movement of the gate in a gate valve and the flow rate is a nonlinear one, with the greatest changes occurring close to the point when the valve is nearly entirely closed. When a valve is used to regulate the flow of fluid, the relatively high velocity of the flow via a partial opening wears out the gate and seat of the valve. This year, in conjunction with any potential vibrations that may occur in the gate, shortens the service life of the valve and makes it less effective. As a consequence of this, an on-off control is the one and only application that is suitable for a gate valve.

Working of Gate Valve:

In order to regulate the flow of a fluid via a pipeline, gate valves are often installed. The gate or wedge may be found there, and it serves to regulate the flow of fluid. The gate may have a variety of forms; for example, it can be round or rectangular plate-shaped, or it might have a wedge-shaped opening.

A disc of the gate valve is another name for this component. The gate valve may be opened or closed using the valve that is provided. The gate or wedge will move either upward or downward across the flow of any fluid when the wheel with the handle is rotated.

The mechanism that allows the Gate valve to function is as follows: If you turn the handle wheel in a clockwise direction, steam and get will move in a downward direction across the fluid flow, and the gate will be tightly located between two seats.

In order to ensure that the valve does not allow any fluid to escape when it is in its fully closed position.

When the handle Wheel is turned counterclockwise, steam and fluid will move upward across the fluid flow at the same time. This occurs when the handle Wheel is rotated. In this position, the valve is in the opened Chrome closed position, which allows fluid to flow through the Gate valve.

After the Gate has been opened all the way, there will be very little or no resistance to the flow of any field once it has been activated.

When fluid strikes the gate in a semi-open condition, it causes erosion of the gate, which is not a desirable state. In addition to that, it generates a significant amount of noise and vibration at the same time.

Advantages of Gate Valve:

• Gate valves have a very low barrier to fluid flow. The straight inner media channel of the body enables the medium to flow directly through the valve without having to make a direction change, which contributes to the lowest fluid resistance that the valve exhibits. As a result, there are no obstacles in the flow’s course.
• Because the movement direction, also known as the ram, of a gate valve is perpendicular to the direction in which the medium is flowing, this kind of valve has a limited impact on the environment. When compared to globe valves, gate valves use less amount of power to open and close. As a consequence of this, gate valves are preferred. Because of how efficiently they use energy, they help bring down the overall cost of ownership.
• The bodies of gate valves are made up of just a few basic components. Because of this, they are simpler to operate compared to isolation valves that have designs that are more complicated.
• Gate valves are able to be employed in the circuit in either direction, therefore they are very versatile. To put it another way, the flow of their medium is not impeded in any of the directions that the valve body may point it in, and they are not affected by the medium’s directional flow. Because of this, they are well suited for usage in pipelines, in which the flow direction may vary depending on the medium.
• When compared to other types of valves, gate valves often have less erosion on the surface of their sealing when it is completely open. This low rate of erosion may be traced, in large part, to the effective functioning of the valve’s tight seal.
• The pressure loss that is caused by gate valves is kept to a minimum because of the laminar flow that they produce. When there is a possibility of reducing the loss of pressure, doing so is almost always beneficial.

Applications of Gate Valves:

Gate valves have applications in many different kinds of businesses, including the oil and gas sector, the pharmaceutical industry, the manufacturing industry, the automotive industry, the shipping industry, and the marine industry. Non-rising stem gate valves are often used on ships, in applications that take place underground, and in other environments that have limited vertical space. This is because these valves do not need any extra space than what is already available. Gate valves are useful tools that may be put to use in hard environments, such as those that have high temperatures and/or high pressures. They are often found in areas such as mining operations, water treatment facilities, power plants, and offshore applications. Gate valves have a wide variety of applications, and you can find them in a variety of settings, both above and below ground. Gate valves may be found in a variety of situations. They are used under conditions that call for a free bore and little pressure loss on the part of the system. When a gate valve is in its fully open position, there is no obstruction in the flow path; hence, a pipe cleaning pig may be employed on the valve. The gate valve is a flexible piece of equipment that may be used for a broad range of fluids, including water and gas. They are suitable for use with potable water, wastewater, and neutral liquids at temperatures ranging from -20 degrees Celsius to 70 degrees Celsius. In addition, they are suitable for usage with gases that have temperatures ranging from -20 to 60 degrees Celsius and flow velocities reaching up to 20 metres per second.

From where to buy the best gate valve?

GMK is an API-Certified manufacturing company that specializes in the production of gate valves and is engaged in the business of producing gate valves. Additionally, GMK is in the business of producing gate valves. In addition to gate valves, we also make other varieties of industrial pipeline valves, such as trunnion-mounted ball valves, shut-off pig valves, and wellhead equipment. These are some of the goods that fall under the category of industrial pipeline valves.

What gate valves GMK offer:

When it comes to the variety and types of Ball valves, GMK covers all the bases and offers a number of gatevalves. Some of them include Cast Steel Wedge Gate Valve, GMK Bellow Seal Gate Valve, GMK DIN Gate Valve.
