Four Way Ball Valves

On GMK 4 Way Ball Valves screwed ends and L-L or Double L ports are the common port configurations. This style of valve is employed if a single valve is required to execute two right-angle diversions at the same time. These valves will always have two inputs and always have two outputs at any given time. In order to do this, the balls contained inside the valve are subjected to painstaking machining.

Size:1/2″-20″

Pressure:150LB,300LB

Material:WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 904l,Hastelloy C etc

Connection:Flanges

Operate:Hand lever, Gearbox, Pneumatic Actuator

Description
Technical
Standard
Q&A

DESCRIPTION

Four Way Ball Valves display the switch’s location through grooves on the actuation shaft. The ball valve may be made anti-static if that is what the situation calls for. Between the ball and the valve stem, as well as between the valve stem and the valve body, conductive springs are placed to prevent static ignition from starting a fire.

Benefits

It completely seals with the use of pressure-activated seals.
To restrict the range of motion between the valve’s open and closed positions, a limit mechanism is included in the handle.
A lock hole is provided in the limit block for locking the switch position when the valve is used on a key device to prevent accidental activation. The switch’s on/off handle is properly labeled.
A flat key, spline, or square key connects the valve stem to the handle, allowing for easy disassembly and reassembly and high levels of adaptability. A mechanism to prevent blowouts is built into the valve stem.
Braided, flexible graphite sealing rings or tetrafluoride sealing rings make up the packing of the valve, allowing the valve stem to achieve dependable sealing under certain lubrication conditions.
Different variations of the sealing pair exist.

Feature

Bolted bonnet
X type design,multi port
Trunnion mounted ball
Full Port
Anti-blow out stem
Fire safe design and anti-static device
ISO 5211 mounting design upon request
NACE MR-01-75

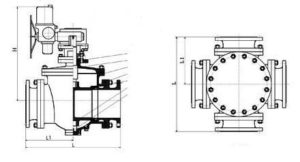

fourwayballvalves_420_307

TECHNICAL SPECS

Size 1/2″-20″

Pressure 150LB,300LB

Material WCB, LCB,LCC, WC6,WC9, C5,C12,C12A, CF8, CF8M, CF3, CF3M, CN7M,Alloy 20,B148,UB6 904l,Hastelloy C etc

Connection Flanges

Operate Hand lever, Gearbox, Pneumatic Actuator

Supply Ability 10000 Piece/Pieces per Month

Port Wenzhou/shanghai

Payment Terms L/C,D/A,D/P,T/T

Standard

Design and Manufacture: API6D, ASME B16.34
Pressure-temperature rating: ASME B16.34
Face to face(end to end): Manufacture standard
End Connection: ASME B16.5;
Test and inspection: API598,API6D
Fire safe: API607,API6FA

Q&A

Can we order goods from you directly?

Yes, we look forward to receiving your order. However, please note our minimum purchase quantity. If you require smaller quantities we will be happy to arrange an individual delivery. We would be delighted to assist you.

Can I get a discount?

This depends on the specific situation, you can call directly to consult.
